A2-s1,d0 · EN 13501-1 ★ Flagship System

X Panel
3D Core A2

A high-rigidity aluminium facade system built around a precision-formed 3D grid core — delivering superior flatness across spans that redefine what composite panels can achieve.

Download Technical Data Talk to an Engineer
A2-s1,d0
EN 13501-1
Independently Certified
6,000mm
Maximum Panel Length
A2
EN 13501-1 Fire Classification
30yr
PVDF Coating Warranty
X Panel 3D aluminium core product detail
System Overview

3D Core Technology

Unlike flat-fill composite panels, the X Panel system is built around a precision-formed 3D aluminium grid core — a structural geometry that delivers exceptional stiffness-to-weight performance. This enables panel spans up to 6,000mm without visible deflection, making it the system of choice for supertall towers, complex curved facades, and architectural projects where flatness and appearance cannot be separated.

The non-combustible aluminium core means A2-s1,d0 fire classification is an inherent material property — not a treatment or additive. Independently tested and certified to EN 13501-1.

Fire ClassA2-s1,d0 · EN 13501-1
Core3D Aluminium Grid · Non-Combustible
Max Span6,000mm length · 2,000mm width
CoatingPVDF Fluorocarbon · AAMA 2605 · Up to 30yr*
View Full Specification Certifications
Technical Specification

Complete System Data

Dimensions & Format
Panel Thickness15mm / 20mm / 25mm (custom available)
Max Panel Length6,000mm
Max Panel Width2,000mm
Length Tolerance— (to be confirmed)
Width Tolerance— (to be confirmed)
Thickness Tolerance— (to be confirmed)
WeightFrom 6.5 kg/m² (to be confirmed)
Core & Skin
Core Technology3D Aluminium Grid Structure
Core MaterialAluminium Alloy (non-combustible)
Skin MaterialAA3003 / AA5052 Aluminium Alloy
Front Skin Thickness— (to be confirmed)
Back Skin Thickness— (to be confirmed)
Fire Performance
EN 13501-1 ClassA2-s1,d0
Smoke Productions1 (Very Limited)
Burning Dropletsd0 (None)
Test StandardEN 13501-1 · EN ISO 1716
Certification BodyIndependent Third-Party Laboratory
Coating System
Coating TypePVDF Fluorocarbon
StandardAAMA 2605 / QUALICOAT Class II
Warranty30 Years
ApplicationISO-controlled factory environment
Gloss Options10% – 70% (project specific)
Custom ColourRAL / NCS / Pantone on request
⚠ Technical tolerance values and skin thickness are pending confirmation from product TDS. Values marked "to be confirmed" will be updated upon receipt of certified data sheet.
Surface & Finish

Finish System

Every X Panel finish is applied using PVDF fluorocarbon technology — the architectural coating standard for long-term colour stability in exterior applications.

Solid Colours
Full-depth opaque PVDF colours across the complete RAL and NCS spectrum. Consistent tone from panel to panel at project scale.
RAL Range NCS Range Custom Match
Metallic & Anodised Effect
Mica-particle PVDF metallic finishes and anodised-effect coatings — including the gold anodised specified for Australia 108.
Gold Anodised Silver Metallic Bronze Champagne
Colour-Shift & Special Effect
Iridescent colour-shift PVDF that changes tone with viewing angle and light conditions. Specified for the EnCo Terminal curved facade in Bangkok.
Colour-Shift Pearlescent Wood Effect Stone Effect
Compliance & Certification

Independent Certification

Fire, coating, and quality documents are issued as controlled project packages. Tell us the product, project country, and intended submittal use, and we will match the correct certification file set.

EN 13501-1
A2-s1,d0
European fire reaction classification. Non-combustible performance — independently tested to EN ISO 1716 and EN 13823.
Request Package
AAMA 2605
Highest AAMA standard for architectural aluminium coating. Covers colour retention, chalk resistance, and adhesion after 10-year Florida exposure.
Request Package
QUALICOAT
Class II
European quality mark for powder and liquid coating on aluminium. Class II certifies PVDF fluorocarbon coating systems.
Request Package
BS 476 Part 4
Reference
British non-combustibility reference for aluminium-core material review. Supplied as controlled technical documentation after confirming project use.
Request Package
Selected Projects

Specified For

Australia 108 Melbourne
Melbourne, Australia · 2020
Australia 108
100 Storeys · Gold Anodised PVDF · 6,000 m²
X Panel (3D Core) A2
Supertall Residential Gold Anodised A2-s1,d0

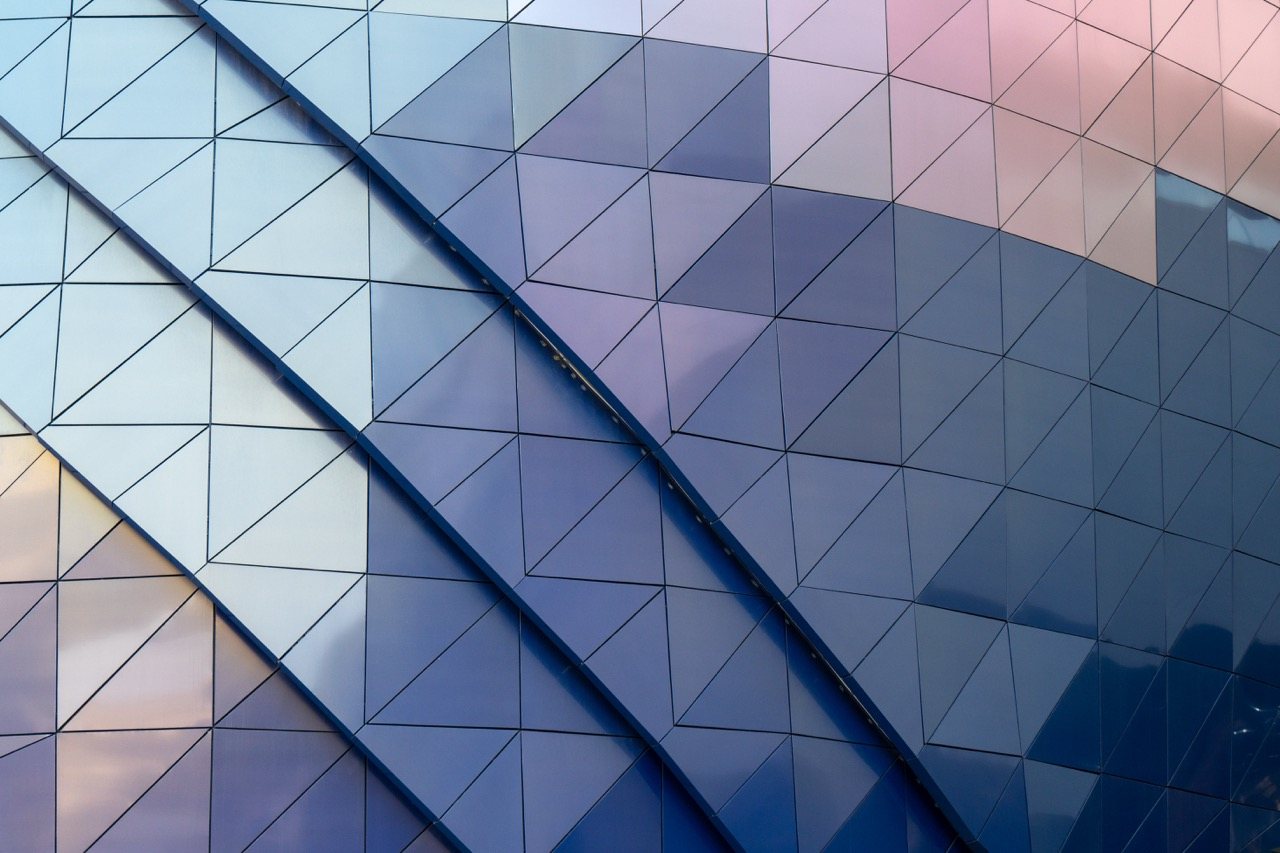

EnCo Terminal Bangkok
Bangkok, Thailand · 2021
EnCo Terminal
Colour-Shift PVDF · Curved Facade · 10,000 m²
X Panel (3D Core) A2
Colour-Shift Curved Facade A2-s1,d0
X Panel (3D Core) A2
